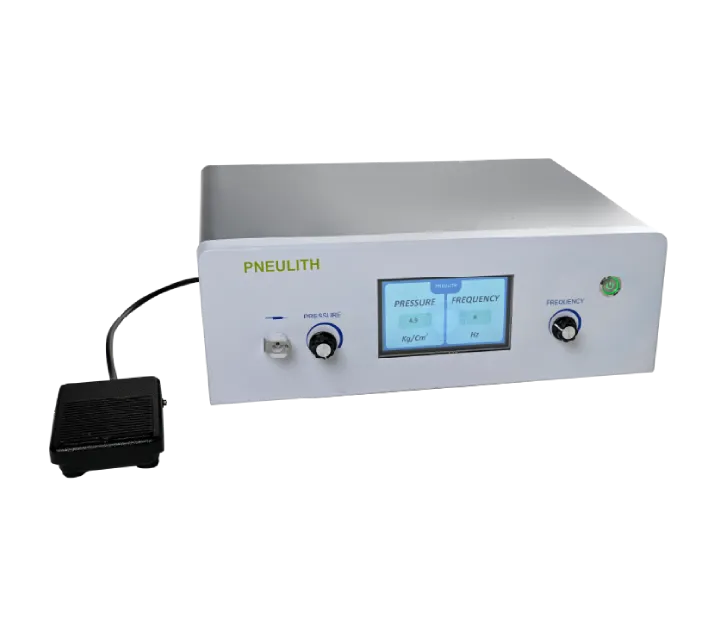

Pneulith

Digital Pneumatic Lithotripsy System

The Pneulith is an advanced digital pneumatic lithotripsy system developed for precise and efficient fragmentation of kidney, bladder, and ureteral stones. Powered by controlled compressed air technology, it ensures consistent performance and reliability in modern urological procedures.

Request Quotation
True Digital Lithotripter

Enhanced patient safety

Intuitive LCD display

Customizable user programs

Making it ideal to be used for

Key Features and Specifications

  • True Digital Interface: Equipped with an intuitive LCD that provides a user-friendly interface for seamless operation and real-time monitoring of all system parameters.
  • Electro-Pneumatic Regulation: Features an advanced regulator that ensures precise pressure settings, resulting in accurate power delivery and enhanced clinical safety.
  • Customizable User Programs: Enable urologists to pre-define specific treatment protocols with set pressure and frequency parameters for effortless configuration during surgery.
  • Automatic Safety Detection: Includes low-pressure detection systems to ensure reliability and patient safety throughout the pneumatic lithotripsy procedure.
  • Ergonomic Handpiece: Lightweight and balanced design (only 150g) to reduce surgeon fatigue during long cases.

Clinical Applications & Benefits

The Pneulith digital pneumatic lithotripter offers several clinical advantages:
Efficient Fragmentation
Efficient Fragmentation

Rapidly breaks down stones of varying hardness in the kidney, ureter, and bladder.

Enhanced Safety
Enhanced Safety

Controlled energy delivery minimises the risk of mucosal injury compared to older mechanical systems.

Portable & Compact
Portable & Compact

Designed for easy transport and setup, making it ideal for diverse clinical environments and smaller operating theatres.

Energy Efficient
Energy Efficient

Built with durability and low power consumption in mind, offering a practical blend of technology and functionality.

Feature Specification
Control Unit
Pressure Source Compressed air / pressurised oxygen
Working Pressure 1.8 – 4 kg/cm²
Maximum Input Pressure 6 kg/cm²
Control Display LCD digital interface with real-time monitoring
Frequency / Pulse Rate Adjustable for procedural needs
Handpieces
Handpiece Dimension ~24 mm × 180 mm
Handpiece Weight ~150 g
Air Compressor
Input Voltage 230 V
Output Pressure 4 kg/cm²
Airflow 30 litre/min
Probes
Lithotripsy Probes Set of various sizes: 0.8mm, 1mm, 1.2mm (URS); 1.5mm (Bladder); 2mm (Renal).
Accessory Name Description
Lithotripsy Probes Set of various sizes: 0.8mm, 1mm, 1.2mm (URS); 1.5mm (Bladder); 2mm (Renal).
Pneumatic Handpiece Ergonomic, lightweight, and fully autoclavable handpiece.
Foot Switch Waterproof pedal for hands-free control of energy delivery.
Air Compressor 230V input, providing 4 kg/cm² output pressure with 30 L/min airflow.
Pneulith.pdf

System Advantages

  • Reliable Performance Monitoring: Real-time feedback supports accurate adjustments and consistent outcomes.
  • Low Maintenance Design: Built for durability and easy upkeep, reducing downtime.
  • Precise Control: Electro-pneumatic regulation ensures consistent stone fragmentation.
  • User‑Centric Digital Control: Digital design offers clear parameter visibility and streamlined adjustments.

FAQs

1. What is the Pneulith Digital Pneumatic Lithotripsy System used for?

Pneulith is used for effective fragmentation of urinary tract stones, including kidney, ureter, and bladder stones. It supports minimally invasive urological procedures such as ureteroscopy and cystolitholapaxy, helping break stones into removable fragments safely and efficiently.

2. How does Pneulith’s pneumatic lithotripsy technology work?

The system uses compressed air to generate mechanical impulses that travel through a rigid probe and impact the stone surface. This mechanical action breaks stones into smaller pieces without thermal energy, reducing the risk of tissue damage during procedures.

3. What type of user interface does the Pneulith system have?

Pneulith features a digital LCD that allows easy monitoring and adjustment of pressure and working parameters. Pre-set programs help simplify operation and ensure consistent performance during lithotripsy procedures.

4. What makes Pneulith suitable for modern urology practices?

Its compact design, digital controls, and reliable stone fragmentation performance make Pneulith ideal for hospitals and clinics. The system offers consistent results with low maintenance requirements, supporting efficient daily clinical use.
