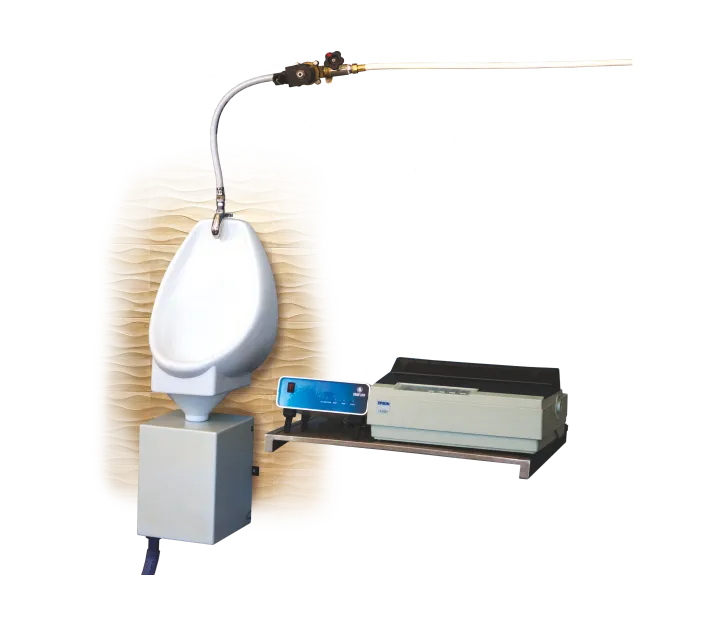

EasyFlow®

Self-Cleaning Gravimetric Uroflowmeter

The EasyFlow® is a revolutionary, standalone uroflowmetry system featuring U.S. and India-patented self-cleaning technology. Designed for maximum hygiene and clinic efficiency, this system automatically flushes and cleans itself after every test, eliminating the need for manual beaker emptying and cleaning.

U.S. Patented Self Cleaning Technology

Superior accuracy

No need of computer system

Comfortable for patients

Wired FLowComp-NG

Key Features & Specifications

  • Patented Auto-Flushing Technology: Automatically empties the beaker and discharges urine directly into the drainage system after each test.
  • Standalone Operation: A fully independent unit that requires no computer system or software to operate.
  • Natural Voiding Position: Specifically designed to allow male patients to void in a natural standing position, ensuring more accurate and representative results.
  • Automatic Report Printing: Directly connected to a dot-matrix printer for immediate, automated diagnostic print-outs.
  • Superior Accuracy: Combines a high-performance microprocessor with advanced signal-processing electronics for clinical precision.
  • Hygienic & Maintenance-Free: Reduces the risk of cross-contamination and minimises manual labour for nursing staff.

Clinical Applications & Benefits

EasyFlow® is the ideal solution for high-volume urology departments looking to improve hygiene and patient throughput:
Benign Prostatic Hyperplasia (BPH)
Benign Prostatic Hyperplasia (BPH)

Reliable screening for outlet obstruction.

Bladder Function Assessment
Bladder Function Assessment

Detailed analysis of urine flow patterns and abnormalities.

Clinic Efficiency
Clinic Efficiency

Eliminates the “cleanup time” between patients, allowing for more tests per hour.

Patient Comfort
Patient Comfort

Provides a clean, private, and dignified testing environment.

Feature Specification
Control Unit Dimensions 205 mm x 156 mm x 68 mm
Control Unit Weight 650 grams
Male Urinal Dimensions 415 mm x 310 mm x 260 mm (H x W x D)
Sensor Box Dimensions 275 mm x 220 mm x 230 mm (H x W x D)
Power Supply 230 VAC, 50 Hz
Flush Valve Power 230 VAC, 50 Hz
System Type Standalone Gravimetric
Accessory Name Description
Control Unit Master processor with printer interface.
Self-Cleaning Urinal Specialised male urinal with built-in flushing mechanism.
Sensor Box Houses the high-precision gravimetric weight sensor.
Automatic Flush Valve Electronically controlled valve for automated drainage.

Compliance & Regulatory Certifications

The EasyFlow system is an essential screening tool for urologists to diagnose and manage:

  • CDSCO Approved
  • IEC 60601-1 Certified
  • ISO 13485:2016

FAQs

1. How does the self-cleaning feature work?

Easyflow uses US and India-patented self-cleaning and auto-flushing technology that automatically empties and flushes out the urine from the collection beaker after each test. This eliminates the need for a technician to manually empty or clean the device, reducing mess and improving safety and workflow efficiency.

2. Does Easyflow require a computer or specialised software to operate?

No, Easyflow is a fully standalone uroflowmetry system and does not require a computer or external software. It operates independently and connects directly to a printer, allowing immediate generation of test reports without additional setup or data transfer steps.

3. What parameters are recorded during a uroflowmetry test with Easyflow?

Easyflow accurately measures standard uroflowmetry parameters such as flow rate, voided volume, and voiding time. These parameters are processed by an inbuilt microprocessor to generate reliable flow curves and numerical values that support clinical interpretation.

4. How does Easyflow enhance patient compliance during uroflowmetry?

The system’s simple setup and natural voiding posture help reduce patient anxiety during testing. Improved comfort and privacy contribute to better patient cooperation, which is essential for obtaining representative uroflowmetry results.
