Wired FlowComp® NG

OS Based Gravimetric Uroflowmeter

The Wired FlowComp® NG is a high-performance, PC-based uroflowmetry system designed for modern urology practices. Powered by proprietary StatFlow software, this system offers centralised control, allowing clinicians to manage patient databases, monitor real-time tests, and archive historical records remotely.

Request Quotation
OS based uroflowmetry

Easy to use

Software based

Tracking of patient records

Wired FLowComp-NG

Key Features & Specifications

  • StatFlow Proprietary Software: Pre-installed software specifically developed for uroflowmetry, featuring a comprehensive patient database and record-tracking system.
  • Centralised Clinical Control: Attendants can add patients, start/stop tests, and print reports directly from a computer in a separate room.
  • High-Resolution Data Capture: Features a 24-bit analog-to-digital converter and a 10Hz sampling rate for superior accuracy and sensitivity.

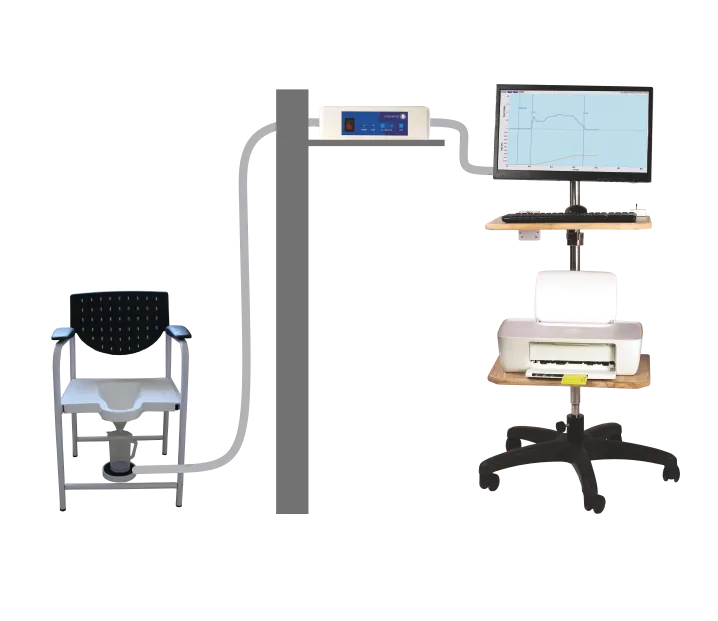

  • Remote Connectivity: Utilises a stable wired connection between the test room and the clinician’s cabin for uninterrupted data transmission.
  • Spill-Proof Design: The specialised voiding chair is engineered to be virtually spill-proof, specifically accommodating the needs of female patients.
  • Optional Self-Cleaning Integration: Can be upgraded to the “Wired Auto-Tersus” model, which includes US-patented self-cleaning technology.

Clinical Applications & Benefits

The Wired FlowComp® NG integrates into a digital workflow to assist in the diagnosis and management of:
Longitudinal Patient Monitoring

Easily compare current results with archived historical data to track treatment progress.

Complex Voiding Dysfunctions

High-sensitivity sensors capture subtle flow fluctuations for more detailed clinical insights.

Streamlined Clinic Workflow

Centralised data entry and automated reporting save significant administrative time.

Professional Documentation

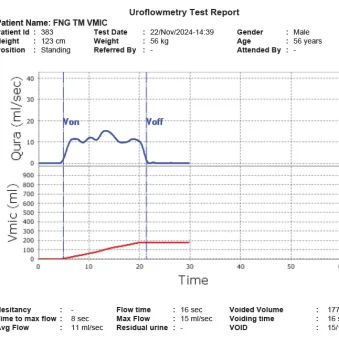

Generates detailed, software-driven reports with clear graphical and numerical outputs for digital or physical archiving.

Component Power Supply Dimensions (L x W x H) Weight
Control Unit 230V, 50 Hz 170 x 116 x 51 mm 450 gms
Processor 5V, 2.1 A, DC 91 x 66 x 30 mm 100 gms
Sensor Powered by Unit 150 x 40 mm (Dia x H) 750 gms
Sampling Rate 10 Hz — —
Accessory Name Description
StatFlow Software OS-based interface for patient data management and test control.
FlowComp NG Sensor High-precision gravimetric sensor with 24-bit AD conversion.
Wired Connection Kit High-quality cabling for a stable data link between rooms.
Voiding Chair Specialised ergonomic chair designed for spill-proof comfort.
Standard Beaker 1000 ml calibrated beaker for urine collection.
Wired FlowComp-Ng.pdf

Compliance & Regulatory Certifications

  • CDSCO Approved
  • IEC 60601-1 Certified
  • ISO 13485:2016

FAQs

1. How does the Wired FlowComp NG perform uroflowmetry measurements?

During the test, the patient voids into a dedicated Flow Sensor connected via cable to a computer system. The Wired FlowComp NG Sensor records weight changes over time, which are processed by the software to generate precise flow rate graphs, total voided volume, and peak flow values, ensuring consistent and reproducible results.

2. Does the Wired FlowComp NG system support digital data storage and reporting?

Yes, the system is designed for digital patient data management through dedicated uroflowmetry software. Test results can be stored, retrieved, and compared over time, while detailed reports with graphical and numerical outputs can be printed or archived for clinical records.

3. How does the Wired FlowComp NG fit into a modern urology workflow?

By combining precise flow measurement with software-driven analysis, the Wired FlowComp NG integrates smoothly into modern urology workflows. It enables clinicians to perform uroflowmetry, analyse results, and document findings within a single digital environment, improving efficiency and clinical decision-making.

4. How does the Wired FlowComp NG differentiate itself from standalone uroflowmeters?

Unlike standalone devices, the Wired FlowComp NG offers enhanced data management, detailed software analysis, and centralised control through a computer system. This allows deeper clinical insight and better documentation compared to basic display-only uroflowmeters.
